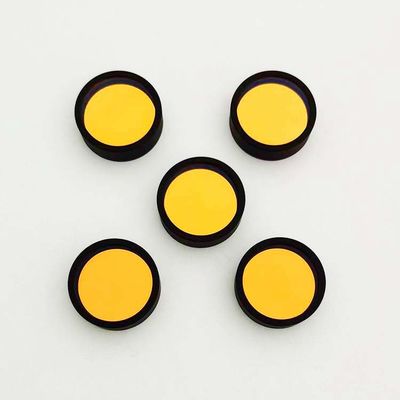

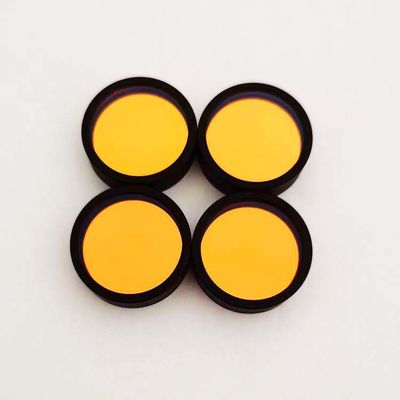

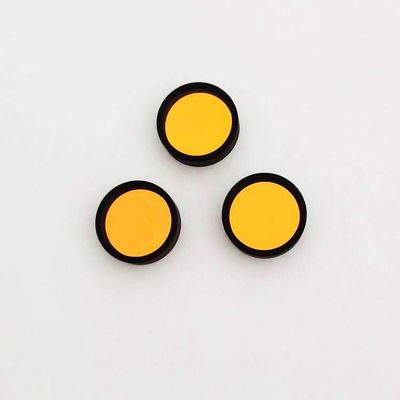

Interferensi VIS Filter Bandpass terlihat 546nm 50 Transmisi puncak
| Tempat asal | Beijing, Cina |
|---|---|
| Nama merek | Kingki |
| Nomor model | BP546 |
| Kuantitas min Order | 5 buah |
| Harga | $70/piece 1-10pieces; $65/piece 11-50pieces; $60/piece >=51pieces |
| Kemasan rincian | Kotak, 100mm*80mm*60mm |
| Waktu pengiriman | 7-28 hari kerja |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | 1000 potong/potongan per bulan |
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Nama produk | 546nm Narrow Bandpass Filter | Substrat | kaca optik |
|---|---|---|---|
| Panjang gelombang | 546nm | FWHM | 10Nm |
| Transmisi puncak | 50% | Pemblokiran | OD5@200-1100nm |
| Ukuran | 12.5*6mm atau disesuaikan | Aplikasi | Instrumen analisis |
| Menyoroti | Filter Bandpass yang terlihat 546nm,Filter Bandpass yang terlihat 50 Transmittansi,gangguan Filter Bandpass 546nm |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
| Center wavelength | FWHM | Tamx | Cut-off | OD | Specification | Quantity | |
|---|---|---|---|---|---|---|---|
| 546nm | 10nm | 50% | 200-1100nm | 5 | 12.5*6mm | Custom |
Deskripsi Produk
Kualitas tinggi 546nm narrow bandpass filter untuk analisis instrumen
546nm sempit bandpass filter adalah filter cahaya tampak. filter cahaya tampak banyak digunakan untuk deteksi elemen, analisis fluoresensi, instrumen analisis, laser, lampu merkuri.
546nm narrow bandpass filter penggunaan utama instrumen analisis
| Filter bandpass interferensi VIS | ||||||
| Jenis | Aplikasi | Panjang Gelombang Pusat | Lebar pita | Transmisi puncak | kepadatan optik | Jenis |
| Deteksi elemen Filter BP |
SBP365 | 365 | 40 | 50 | 5 | KK-BP365 |
| PBP530 | 530 | 8 | 70 | 5 | KK-BP530 | |
| BP589.3 | 589.3 | 10 | 70 | 5 | KK-BP589.3 | |
| KBP766 | 766 | 11 | 70 | 5 | KK-BP766 | |
| Li BP670 | 670 | 10 | 70 | 5 | KK-BP670 | |
| analisis fluoresensi Filter BP |
analisis fluoresensi BP470 | 470 | 20 | 70 | 5 | KK-BP470 |
| analisis fluoresensi BP530 |
520 | 30 | 70 | 5 | KK-BP520 | |
| Analisis alat Filter BP |
Instrumen analisis BP340 | 340 | 10 | 40 | 5 | KK-BP340 |
| Instrumen analisis BP380 | 380 | 10 | 40 | 5 | KK-BP380 | |
| Instrumen analisis BP405 | 405 | 10 | 40 | 5 | KK-BP405 | |
| Instrumen analisis BP415 | 415 | 10 | 40 | 5 | KK-BP415 | |
| Instrumen analisis BP450 | 450 | 10 | 50 | 5 | KK-BP450 | |
| Instrumen analisis BP455.5 | 455.5 | 10 | 50 | 5 | KK-BP455.5 | |
| Instrumen analisis BP492 | 492 | 10 | 50 | 5 | KK-BP492 | |
| Instrumen analisis BP505 | 505 | 10 | 50 | 5 | KK-BP505 | |
| Instrumen analisis BP508.5 | 508.5 | 10 | 50 | 5 | KK-BP508.5 | |
| Instrumen analisis BP510 | 510 | 10 | 50 | 5 | KK-BP510 | |
| Instrumen analisis BP535 | 535 | 10 | 50 | 5 | KK-BP535 | |
| Instrumen analisis BP540 | 540 | 10 | 50 | 5 | KK-BP540 | |
| Instrumen analisis BP546 | 546 | 10 | 50 | 5 | KK-BP546 | |
| Instrumen analisis BP550 | 550 | 10 | 50 | 5 | KK-BP550 | |
| Instrumen analisis BP570 | 570 | 10 | 50 | 5 | KK-BP570 | |
| Instrumen analisis BP578 | 578 | 10 | 50 | 5 | KK-BP578 | |
| Instrumen analisis BP590 | 590 | 10 | 50 | 5 | KK-BP590 | |
| Instrumen analisis BP600 | 600 | 10 | 50 | 5 | KK-BP600 | |
| Instrumen analisis BP620 | 620 | 10 | 50 | 5 | KK-BP620 | |
| Instrumen analisis BP630 | 630 | 10 | 50 | 5 | KK-BP630 | |
| Instrumen analisis BP647 |
647.1 | 11 | 50 | 5 | KK-BP647.1 | |
| Instrumen analisis BP650 | 650 | 11 | 50 | 5 | KK-BP650 | |
| Instrumen analisis BP670 | 670 | 11 | 50 | 5 | KK-BP670 | |
| Instrumen analisis BP690 | 690 | 11 | 50 | 5 | KK-BP690 | |
| Filter BP laser | laser BP441.6 | 441.6 | 10 | 50 | 5 | KK-BP441.6 |
| laser BP488 | 488 | 5 | 50 | 5 | KK-BP488-5 | |
| laser BP488 | 488 | 10 | 50 | 5 | KK-BP488 | |
| laser BP514.5 | 514.5 | 5 | 40 | 5 | KK-BP514.5-5 | |
| laser BP514.5 | 514.5 | 10 | 50 | 5 | KK-BP514.5 | |
| laser BP532-5 | 532 | 5 | 50 | 5 | KK-BP532-5 | |
| laser BP532-10 | 532 | 10 | 50 | 5 | KK-BP532-10 | |
| laser BP632.8 | 632.8 | 5 | 40 | 5 | KK-BP632.8-5 | |
| laser BP632.8 | 632.8 | 11 | 50 | 5 | KK-BP632.8 | |
| laser BP694.3 | 694.3 | 5 | 40 | 5 | KK-BP694.3-5 | |
| laser BP694.3 | 694.3 | 11 | 50 | 5 | KK-BP694.3 | |
| laser BP706.5 | 706.5 | 11 | 85 | 5 | KK-BP706 | |
| laser BP730 | 730 | 11 | 85 | 5 | KK-BP730 | |
| laser BP750 | 750 | 11 | 85 | 5 | KK-BP750 | |
| laser BP785 | 785 | 5 | 85 | 5 | KK-BP785-5 | |
| laser BP785 | 785 | 11 | 85 | 5 | KK-BP785-11 | |
| Filter BP lampu merkuri | Tahap hijau muda BP 525 |
525 | 50 | 85 | 2 | KK-BP525 |
| Lampu merkuri BP 546.1 | 546.1 | 10 | 50 | 5 | KK-BP546.1 | |
| Lampu merkuri BP577 | 577 | 10 | 50 | 5 | KK-BP577 | |
| Lampu merkuri BP690 | 690.7 | 11 | 50 | 5 | KK-BP690.7 | |
| Lampu merkuri BP404.7 | 404.7 | 10 | 35 | 5 | KK-BP404.7 | |
| Lampu merkuri BP435.8 | 435.8 | 10 | 35 | 5 | KK-BP435.8 | |
